Powered vs. Passive Subwoofers: Plan the Whole Installation
Compare an amplified enclosure with a separate subwoofer build by space, wiring, budget and the parts still needed to finish the installation.
If you want more low-end sound without turning the shopping list into a puzzle, decide early whether you want an amplified enclosure or a separate subwoofer and amplifier. Both approaches can work. We would compare the space you can give up, the installation work and the complete cost before picking a cone size.
What a powered enclosure includes
A powered, or active, enclosure combines a subwoofer, enclosure and amplifier. That reduces the number of major components you must select separately. It still needs a compatible audio signal, correctly installed power and ground connections, secure mounting and setup.

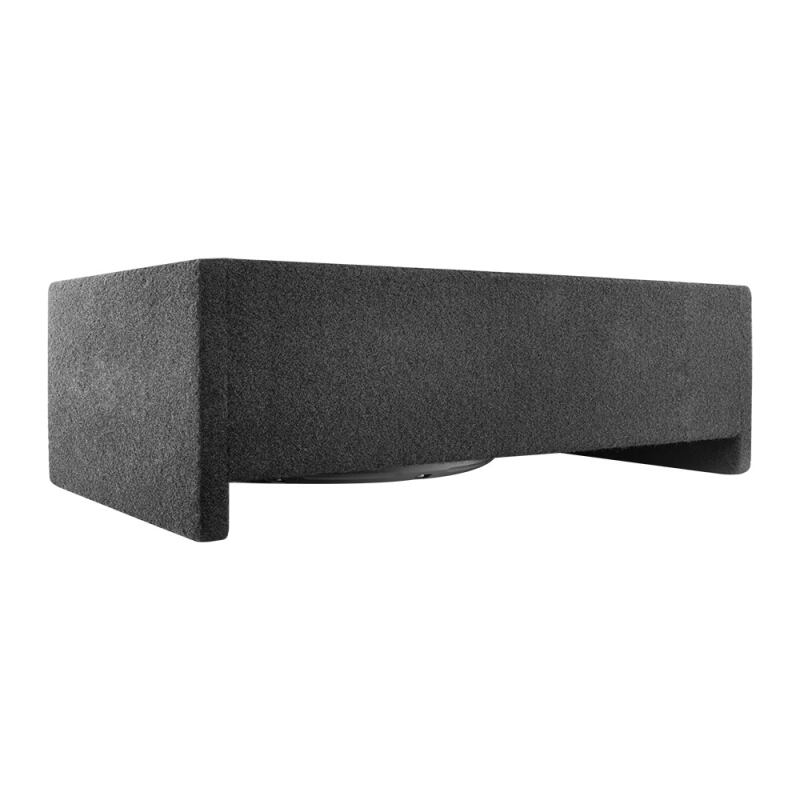

The DS18 EN-DF10A is an amplified, shallow, down-firing enclosure. It is worth considering when an integrated package suits the installation space. DS18 identifies it as an active subwoofer in its manufacturer specifications. Match the supplied unit's revision and manual before choosing wiring or settings, and check the controls and input connections your installation will use.
What a passive build leaves you to choose
A passive subwoofer needs an external amplifier. A bare driver also needs a suitable enclosure. A loaded passive enclosure already contains its subwoofer, but the word loaded does not automatically mean an amplifier is included. Read the included-parts list instead of judging the package by its photograph.
Our DS18 IXS12.2D shallow-mount driver is an example of a separate component. It lets you plan an enclosure and amplification around the project, but those choices must respect its requirements. Shallow mounting depth does not mean the driver will work in any small box. The enclosure design, available internal space and final impedance still need checking.
Measure the usable space, then the way into it
Make a cardboard outline using the exact enclosure's dimensions. Try it in the proposed position with the seats where people actually use them. Check hinges, folding seats, seat tracks, storage lids and cable connectors. A box that fits when the seat is moved forward may be a poor fit for daily use.
Also measure the trunk opening or cabin access route. Leave the manufacturer's required room around the enclosure and amplifier. For a down-firing design, preserve the specified clearance beneath the speaker; carpet, cargo and improvised mounting can change that space. Secure the enclosure properly rather than allowing it to slide around as loose cargo.
Price the finished system
For a powered enclosure, list the unit, integration hardware, power wiring, mounting supplies and installation. For a passive system, add the amplifier and, if needed, the enclosure and speaker wiring. Allow for signal integration with a factory amplified system and for tuning after installation.
Separate components can offer more choices when you later change one part of the system. An integrated enclosure can simplify the initial plan. Neither advantage is automatic: a future upgrade may require different wiring or space, and a compact powered unit still needs a proper installation. Buy for the system you intend to use, not an imaginary maximum build.
Before you add a subwoofer to the cart
- Identify whether the item is a bare driver, loaded enclosure or amplified enclosure.
- Confirm the exact package contents and the correct manual.
- Measure installed space, access, movement and ventilation.
- Check the factory radio or amplifier's signal-integration requirements.
- Include wiring, mounting and setup in the total budget.
Common questions
Can I plug an amplified enclosure straight into the radio?
Not without checking its inputs and installation requirements. Audio signal connections and power connections serve different jobs. Your radio and factory audio package determine the appropriate interface.
Will a shallow subwoofer fit under my seat?
Only measurements and an approved enclosure plan can answer that. Seat tracks, wiring, ventilation and moving parts can rule out a location even when the driver's depth looks small.
Which approach would you choose for a daily driver?
We would start with the space and level of installation you can support. Contact us with vehicle details, a measured mounting area and your current radio information. These catalog examples are starting points, not guaranteed vehicle-specific fits.
