Tacoma Leveling Kit: What to Check Before You Buy

A Tacoma leveling project goes better when you decide what you're trying to accomplish before ordering parts. A different stance, room for a specific tire and improved control on rough roads are separate goals. Write yours down. It will help you avoid buying a small kit now and replacing most of it later.

Record the starting point

Take clear photos of the truck on level ground and note what is already installed. Include tire size, wheel specifications, suspension parts and any regular bed load. If you carry tools during the week, measure and assess the truck in that normal condition, too.

Have an installer check whether the truck's current height is caused by factory equipment, previous modifications or worn components. Leveling around an unknown setup is a poor starting point.

Choose the tire before promising clearance

There isn't a useful universal answer to “What tire will fit with a level?” Tire dimensions, wheel width, offset and the truck's particular equipment all matter. Clearance while parked is only one check. Steering and suspension movement need to be considered as well.

Give the installer the exact tire and wheel specifications you're considering. Ask what rubbing checks or additional work that combination requires. Don't buy a tire based only on another owner's nominal lift height.

Ask about alignment and control arms

The question isn't simply whether aftermarket upper control arms are available. It's whether your planned setup needs them to meet its alignment and clearance requirements. Ask for the reason behind the recommendation and which measurements will be checked.

Bilstein's ride-height-adjustable 5100 uses application-specific spring-seat positions. The available adjustment is not the same across every truck. Follow the instructions for the exact part number instead of treating the maximum advertised lift as a target.

Price the whole job

• Front and rear parts, with quantities and any required springs.
• Mounts, bushings or hardware that won't be reused.
• Installation, alignment and any manufacturer-required follow-up inspection.
• The tire and wheel package, if you're changing those at the same time.

A quote that includes these details is easier to compare than two prices for boxes with very different contents. Ask your installer to explain what remains stock.

My buying advice

Pick the smallest change that meets your actual goal, and keep some budget for getting the setup right. If your Tacoma drives mostly on pavement, say so. A truck you enjoy driving every day is a better result than a stance you like only when it's parked.

Shop Tacoma suspension parts

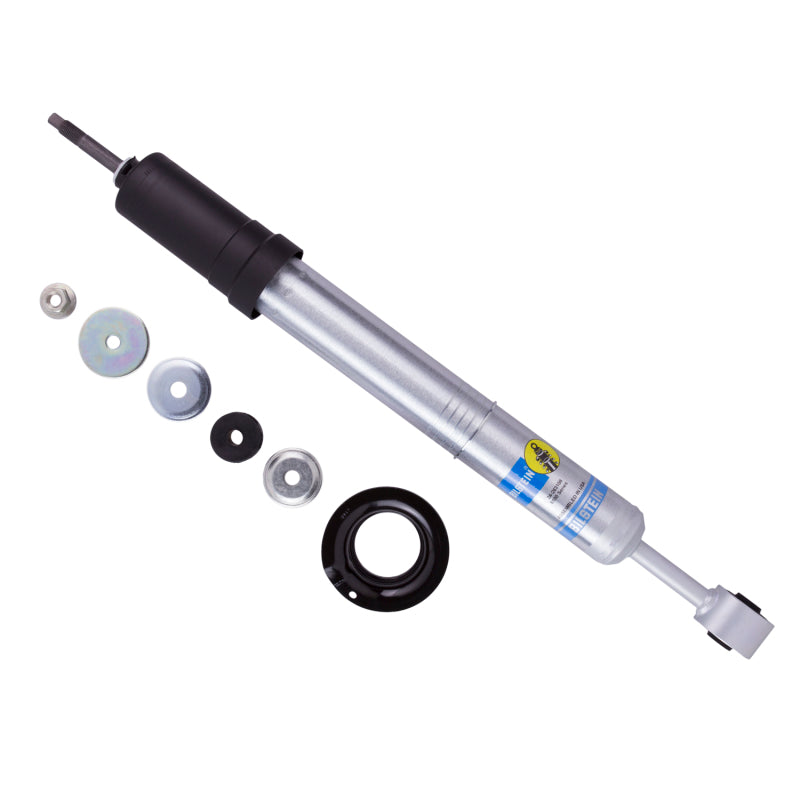

Consider this front 5100 only after checking the exact application and spring-seat instructions.

This B8 upper-control-arm kit is a possible part of a compatible setup. Your installer should determine whether replacement arms are needed.

This Eibach package combines front coilovers and rear shocks for listed applications. Check the full kit contents and exclusions.

Confirm the current application, kit contents and availability on each product page before ordering.

Planning a level or lift? Contact us with your Tacoma's year, drivetrain, current suspension and target ride height so we can help you check the parts.

Manufacturer references

• Bilstein ride-height-adjustable 5100 overview
