Car Amplifier Matching: RMS Power, Ohms and Voice Coils

An amplifier's biggest printed wattage is not enough to match it to a subwoofer. We start with RMS output at the final speaker load, then check the subwoofer's requirements, wiring configuration and enclosure. Those details turn two attractive product listings into a system you can evaluate before spending money.

Read the power rating at the load you will use

RMS ratings are the useful comparison point here; a peak or maximum number is a different specification. Also check the stated test conditions. An amplifier may have several legitimate output figures because its output changes with the connected impedance.

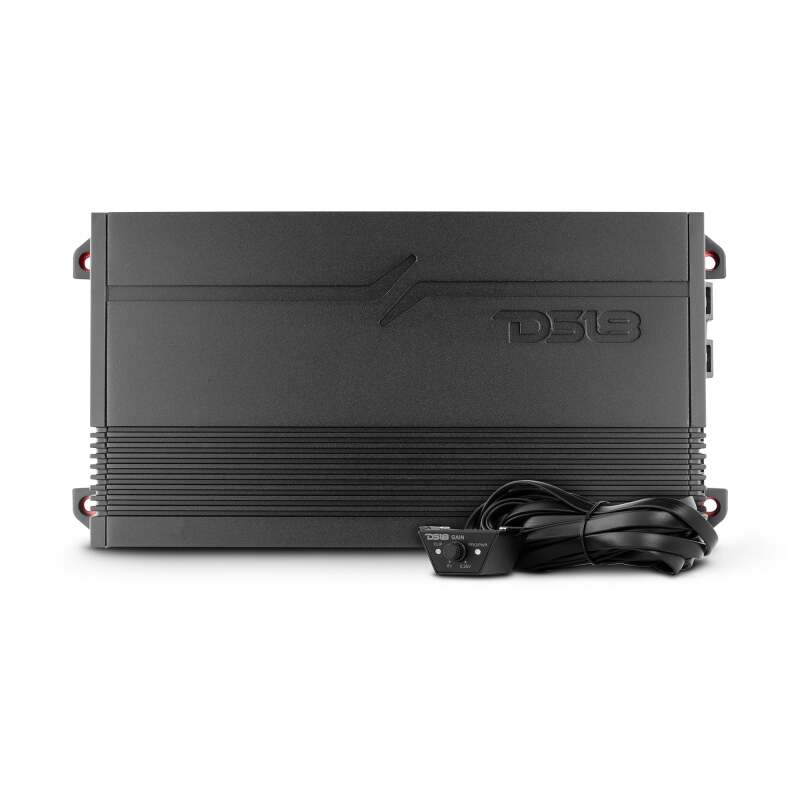

For example, DS18 rates the G1800.1D mono amplifier at 250 watts RMS into 4 ohms, 400 into 2 ohms and 600 into 1 ohm, at 14.4 volts. Those are different operating conditions for the same amplifier. Its model number does not mean it delivers 1,800 watts RMS to every subwoofer. See DS18's published specification.

Dual voice coils need a complete wiring plan

A dual-voice-coil subwoofer has two coils. Their nominal impedance is not automatically the final load at the amplifier. One dual-2-ohm subwoofer can form a nominal 1-ohm parallel load or a 4-ohm series load. Adding more subwoofers changes the possibilities again. KICKER's wiring diagrams and resistance formulas illustrate why the whole circuit matters.

The DS18 IXS12.2D shallow subwoofer is a real dual-2-ohm example from our catalog. We are using it to explain the label, not declaring it a complete matched package with the amplifier above. Before buying, confirm the exact subwoofer count, coil configuration, target load, required enclosure and the manufacturer's recommended power range together.

Respect the amplifier's operating limits

A lower impedance is not a free performance upgrade. The final load must stay within the amplifier's stated limits for the mode you use. A bridged rating is also different from an individual channel rating. Do not copy a mono-amplifier wiring diagram onto a bridged multi-channel amplifier without checking its manual.

Keep the system drawing simple enough to review: source, amplifier, each channel, each speaker and every coil. Label the final load beside the amplifier output. If two diagrams disagree, resolve the disagreement before connecting power. An installer can check the plan and the completed wiring without relying on a product title alone.

Gain is a setup control

Gain matches the source signal level to the amplifier's input. It is not an extra volume knob or a way to make an amplifier meet a larger advertised rating. KICKER explains this distinction in its gain-matching guidance. Use the procedure for your actual equipment and suitable test equipment; a knob position copied from someone else's installation is not a calibration.

Include crossover setup, a suitable enclosure, secure mounting, adequate ventilation and the vehicle's electrical supply in the installation discussion. If the system distorts or repeatedly enters protection, stop and find the cause. Turning up gain or replacing a fuse with a larger one is not a diagnosis.

Five details to collect before ordering

• Exact amplifier model and intended mono, stereo or bridged mode.
• Subwoofer model, quantity and single- or dual-coil configuration.
• Final nominal impedance shown on a complete wiring diagram.
• RMS output at that load and the speaker manufacturer's recommendations.
• Enclosure requirements, power-wiring plan and professional setup budget.

Common questions

Should the amplifier and subwoofer have identical wattage labels?

Matching labels is not the goal. Compare the correct RMS specifications, supported load and manufacturer guidance, then account for how the system will be configured and tuned.

Does a two-ohm subwoofer always connect as two ohms?

No. Check whether that number describes one coil, the complete speaker or a prewired enclosure. A dual-coil model needs its wiring configuration identified.

Can you help check a proposed combination?

Yes. Contact us with both model numbers, subwoofer quantity, enclosure and vehicle details. We can help identify missing information before you order; a broad vehicle match alone does not validate the electrical design.
